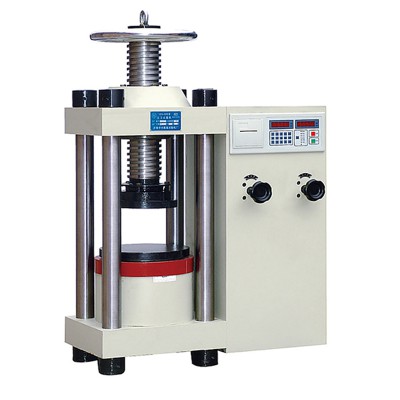

300Ton Hydraulic Compression Testing Machines HZ-010
300Ton Hydraulic Compression Testing Machines HZ-010 is mainly used for brick, stone, cement, concrete and other building materials, compressive strength test,also used to test the compressive performance of other materials.Spatial Adjustment Method:Through the hand wheel rotation, the adjustment of
Tel:+86 13711888650
  • Consult
  • Add to cart
  • Enlarge QR code
Product Details
Product Labeling

300Ton Hydraulic Compression Testing Machines HZ-010 is mainly used for brick, stone, cement, concrete and other building materials, compressive strength test,also used to test the compressive performance of other materials.



Spatial Adjustment Method:
Through the hand wheel rotation, the adjustment of space to achieve compression.

Hydraulic System:
The oil tank is sucked through the filter screen and be inhaled pump oil ,through the petroleum pipeline of oil pump transport to oil valve,When the hand wheel to send off the oil, due to the role of oil will push the piston, the oil from the return pipe to tank, when the hand wheel to open get the oil, then the working fluid into the fuel tank through the tubing, pressure tubing through and through oil return valve to tank.

Control System:
Hydraulic Compression Testing Machines HZ-010 adopts hydraulic loading, electronic measuring force, with a load of figures, the loading rate shows ,the maximum load to maintain, as well as overload protection and power data retention and other functions.

Safety Protection Device:
When the test force more than 3% of the maximum test force, the overload protection, oil pump motor shut down.

Fixture:
Whole set fixtures include: a set compression platen fixture

Technical Specifications:

 Max load2000kN2000kN3000kN
Test force measuring range 4%-100%FS

Test Force showed the relative error≤indicating value±1%≤indicating value±1%<indicating value±1%
Silk pole adjustment methodManual operationpower-drivenpower-driven
Test Force Resolution                      0.01kN0.01kN0.01kN
Hydraulic pump rated pressure                       40MPa

Upper and lower bearing plate size                     φ225mm×φ300mmφ260mm×φ300mmφ370mm×φ370mm
Maximum distance between the upper and lower plate                  320mm320mm330mm
Piston diameter                           φ250mmφ250mmφ310mm
Piston stroke                           30mm30mm50mm
Motor Power                         0.75 kW0.75 kW1.1 kW
Outside dimension800×500×1200mm800×500×1200mm1000×600×1500mm
Weight                            750kg750kg1800kg
