Computerized plug-in force testing machine

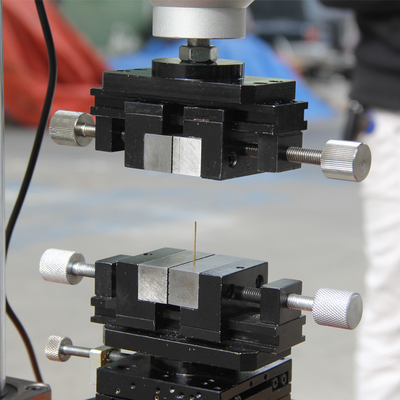

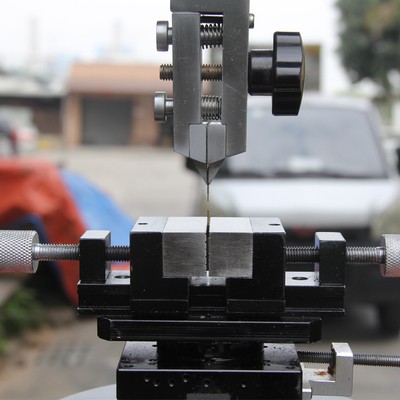

The insertion and extraction force testing machine is suitable for testing the insertion and extraction force of various connectors. With the automatic centering device designed by Zhuli, a completely accurate insertion and extraction force test can be obtained. Using WINDOWS, the Chinese screen set
Tel:+86 13711888650
  • Consult
  • Add to cart
  • Enlarge QR code
Product Details
Product Labeling

The insertion and extraction force testing machine is suitable for testing the insertion and extraction force of various connectors. With the automatic centering device designed by Zhuli, a completely accurate insertion and extraction force test can be obtained. Using WINDOWS, the Chinese screen setting and operation of the window Simple and convenient, and all data can be stored (test conditions, displacement curves, life curves, inspection reports...etc.)


Comply with the standard:

"GB/T16491-1996 Electronic Universal Testing Machine"

Equipment use:

Electronic plug-in force testing machine is suitable for various materials and products in textile, rubber, plastic, synthetic leather, tape, adhesive products, plastic film, composite materials, electronics, metal and other industries to perform various tests such as stretching, compression, bending, shearing, peeling (90 degrees and 180 degrees), tearing, etc. to determine the quality of the product.

Application industries:

Electronic plug-in force tester is widely used in wires and cables, hardware, electronic appliances, packaging and printing, medical equipment, auto parts, textiles and leather, clothing and footwear, rubber and plastic products, colleges and universities; scientific research laboratories; commodity inspection and arbitration, technical supervision departments and other industries. It is the basic equipment for quality management and physical property testing


Model: HZ-1013A

Maximum load: 50KG American Shiquan high-precision sensor

Capacity selection: 1kg, 5KG, 10KG, 20KG, 50KG can be selected

Unit switching: Kg, lb, N

Measurement system: load cell + HZ-2000

Load measurement accuracy: load cell + HZ-2000 display ±0.5% (5%-100% of full scale)

Resolution: 1/50000

Maximum test space (excluding fixture): about 300mm (excluding fixture, special test space can also be customized according to customer needs)

Test speed: 50-300mm/min stepless speed regulation and 5-speed fixed speed (special test speed can also be customized according to customer needs)

Data sampling frequency: 200times/sec

The machine contains a thermal printer, which can automatically output the test results.

Can store the results of 10 test reference points, automatically calculate the average value, automatically capture the maximum value, and the force value at the time of breaking.

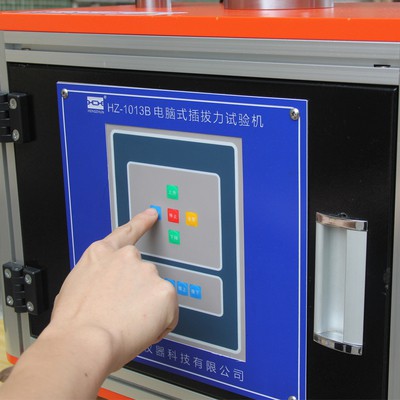

Display mode: HZ-2000 has a dark blue LCD screen with Chinese display and a thin film touch key, with the following functions:

①. Single test, manual 10-point statistics, and automatic calculation of average value and break value;

②. Automatic switching of multiple units such as kgf, Lbf, N;

③. Free point selection function;

④. Multi-function correction function;

⑤. Automatic printing function;

⑥. Adopts 24-bit AD acquisition, with a resolution of 1/200000;

⑦. Decimal places can be selected from 0 to 4 digits;

⑧. Power-on password protection function can effectively prevent non-operating personnel from starting the machine;

⑨. The breakpoint ratio ranges from 0 to 99%, and users can set the appropriate break downtime according to different materials.

⑩. The overload protection function can be set to effectively prevent the machine from overloading;

Breakpoint ratio setting range: 0~99% It can be conveniently set according to the test needs of different test pieces to achieve the stop state at different positions.

Power system: AC motor

Power: 120W

Volume: 450×550×1400mm

Weight: 75kg
