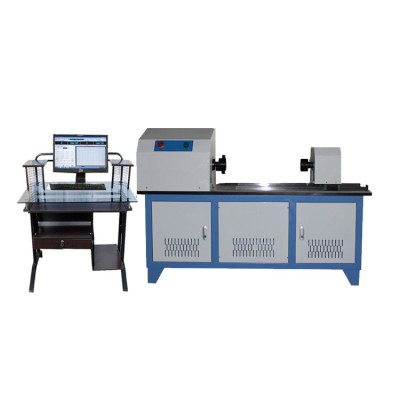

This machine is mainly used for testing the torsional mechanical properties of metal materials and bolts, tools, finished products, structural parts, transmission shafts, parts, fasteners and other samples at room temperature or in special environments. It can also be used for torsional damage and other performance tests of non-metallic materials and finished products. The tested samples are installed between the clamps with adjustable space, which can adapt to the torsional mechanical properties tests of different tested samples.

Comply with standards:

GB/T 10128 "Room Temperature Torsion Test Method for Metallic Materials", JJG 269 "Torsion Testing Machine Calibration Procedure", etc.

Application industries:

Metrology quality inspection, metallurgy and steel, machinery manufacturing, fasteners, hardware tools, automotive parts, colleges and universities, scientific research laboratories, etc.

Technical parameters:

Maximum range of optional sensor (Nm): 50

●Torque measurement range: 1%-100%FS

●Minimum torque reading value (Nm): 0.01

●Test torque resolution 1/±300000

●Relative error of torque indication: ≤±1.0% (forward and reverse directions)

●Relative error of torque repeatability: ≤1.0% (forward and reverse directions)

●Angle measurement range 0-10000°

●Relative error of angle indication: ≤±1% (forward and reverse directions)

●Minimum resolution of torsion angle (small angle measurement): 0.01°

●Minimum angle reading value: 0.01°

●Test speed: 0.05-720°/min (2r/min)

●Relative error of torsion speed indication: ≤±1% (both forward and reverse directions)

●Repeatability error of torsional speed indication: ≤1.0%

●Distance between force plate and torque plate (mm): 0-500

●Specimen clamping diameter: customized according to actual specimen

●Power supply: AC 220V±10%, 50Hz

●Specimen clamping method: standard flange chuck or three-jaw chuck

●Test level: Level 1
