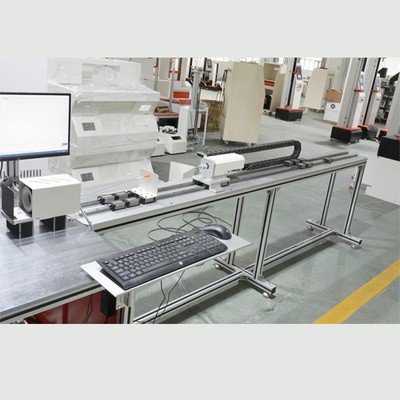

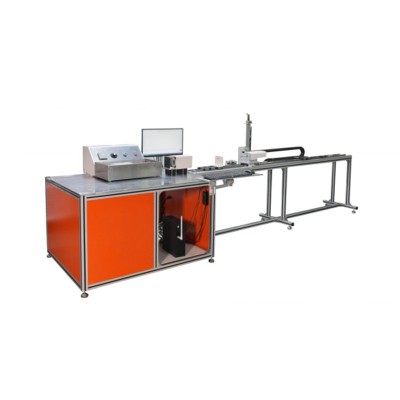

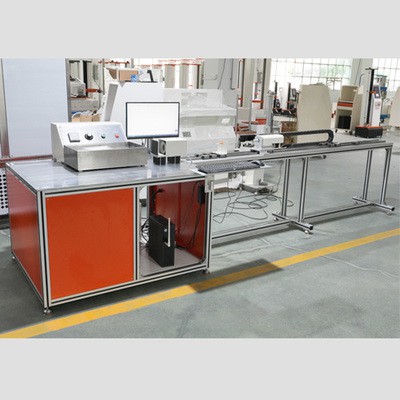

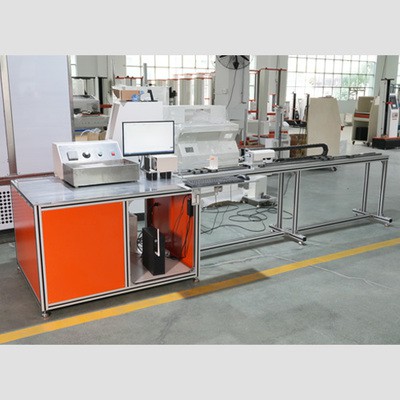

Computerized Guidewire Catheter Torque Testing Machine HZ-1018
This equipment is developed and designed to meet the torque detection of standard specimens. It is mainly composed of mechanical parts, electrical control parts and software control systems. It has the functions of automatic data collection, storage, output and printing, and is easy to operate.Widel
Tel:+86 13711888650
  • Consult
  • Add to cart
  • Enlarge QR code
Product Details
Product Labeling

This equipment is developed and designed to meet the torque detection of standard specimens. It is mainly composed of mechanical parts, electrical control parts and software control systems. It has the functions of automatic data collection, storage, output and printing, and is easy to operate.



Widely used in metrology and quality inspection; clothing and footwear; rubber and plastics; metallurgy and steel; machinery manufacturing; electronic appliances; automobile production; textile and chemical fiber; wire and cable; packaging materials and food; instrumentation; medical equipment; civil nuclear energy; civil aviation; colleges and universities; scientific research laboratories; commodity inspection and arbitration, technical supervision departments; building materials and ceramics; petrochemical industry; and other industries.


ModelHZ-1018
Maximum load100N, 200N, 500N, 1KN, 2KN, 5KN, optional
Torque range0-100 N·M
Accuracy level0.5 grade
Effective force measurement range0.2%~100% (0.5 grade)
Force measurement accuracyWithin ±0.5% of the indicated value
Testing machine resolutionMaximum load 1/200000, no internal and external division, and the full-range resolution remains unchanged
Load sensor

Basic configuration: one tension and compression sensor (maximum load), one static torque sensor

Extended configuration: multiple sensors can be added

Deformation measurement system (optional according to requirements)Extended configuration: Small deformation: gauge length 25mm, 50mm, 100mm Deformation range: 5mm, 10mm, 25mm
Effective test width390mm (can be widened according to customer requirements)
Effective stretching space400, 500, 600mm (can be increased according to customer requirements)
Test speed range0.001~500mm/min
Displacement measurement accuracyWithin ±0.5% of indicated value / within ±0.2% of indicated value
